Description

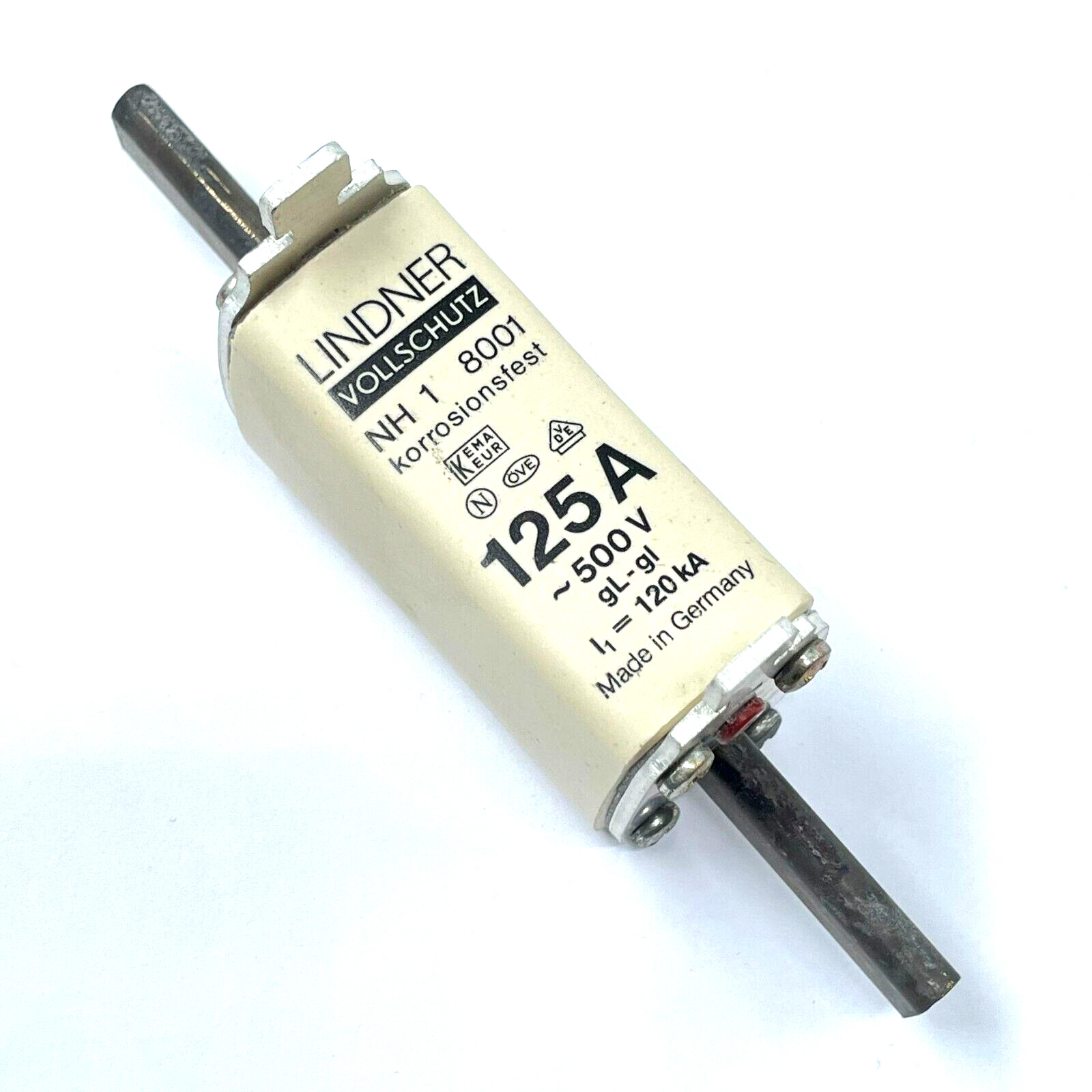

A 125A, 500V fuse link is typically used for protecting circuits in both AC and DC applications where high current and voltage are present. Here’s a detailed overview based on the available information:
Specifications:
-
Current Rating: 125 Amperes (A)
-
Voltage Rating: 500 Volts (V) – This can apply to AC or DC, though specifics can vary by model:
-
AC: Often rated for 500V AC
-
DC: Can be rated for 250V DC or 500V DC depending on the manufacturer or design
-
Common Types and Features:
-
-
Characteristics: gG (general purpose) or gL (full range breaking capacity)
-
Breaking Capacity: Typically high, like 120kA for AC and can vary for DC, often around 80kA to 100kA.
-
Construction: Features a ceramic body with copper or silver-plated contacts, often with knife blade terminals for easy installation.
-
Cylindrical Fuses:
-
Size: Common sizes like 22x58mm for high voltage applications.
-
Type: gG for general protection or aM for motor protection.
-
Applications:
-
Protection of Cables and Equipment: Used in industrial setups, solar installations for battery to inverter connections, or in electrical distribution to safeguard against overcurrents and short circuits.
-
DC Systems: In solar energy setups for protecting high-current DC circuits from batteries to inverters.
